Air Cooled & Water Cooled Chillers Solutions

Chiller Series

Main products: air-cooled/water-cooled chiller, air-cooled chiller/oil chiller, air-cooled/water-cooled screw chiller, water-cooled screw low-temperature chiller, evaporative cooled screw chiller, -120℃ compound stacked ultra-low-temperature machine and so on.

Request for quotation

Online Consultation

AIR COOLED INDUSTRIAL CHILLER

Temperature Control Range +7℃～+25℃

WATER COOLED INDUSTRIAL CHILLER

Temperature Control Range +7℃～+25℃

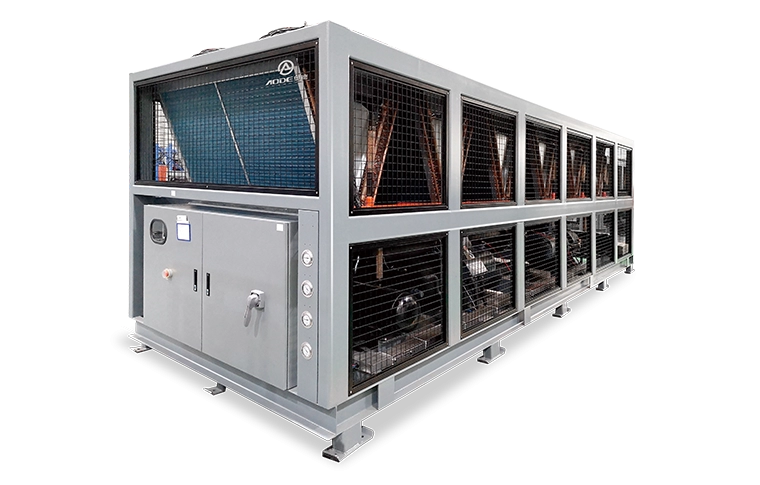

AIR COOLED SCREW CHILLER

Explosion proof ExdII BT4 available.

WATER COOLED SCREW CHILLER

Temperature Control Range +7℃～+25℃

WATER COOLED LOW TEMPERATURE SCREW CHILLER

Temperature Control Range -10℃～-30℃

EVAPORATIVE LOW TEMPERATURE SCREW CHILLER

Temperature Control Range -10℃～-30℃

Cascade Ultra-low Temperature Unit

Complete protection function of the unit, standard with inverse phase failure, high and low voltage, thermal overload, anti-freezing protection, etc.

WATER-COOLED AIR SUSPENSION CENTRIFUGAL CHILLER

Complete protection function of the set, standard equipped with inverse phase loss, high and low pressure, thermal overload, water flow switch, etc.

ADVANTAGES

FEATURES

The unit has complete protection functions, including power phase sequence, high and low pressure, motor overload, anti-freezing protection, etc

Adopt international well-known brand compressor, high-efficient threaded tube heat exchanger

Tank and water pipe material is stainless steel SUS304

Refrigeration valves using Danfoss, Emerson and other well-known brands

Electrical components using ABB, Siemens, Omron and other well-known brands

PARAMETERS

DATA PARAMETER

Item		Unit	AC-01AS	AC-03AS	AC-05AS	AC-10AS	AC-15AS	AC-20AD	AC-25AD	AC-30AD	AC-50AD	AC-60AF
Cooling Capacity		kcal/h	2494	7482	11782	24768	36550	49536	57448	73100	114896	154800
Cooling Capacity		kW	2.9	8.7	13.7	28.8	42.5	57.6	66.8	85	133.6	180
Power Input		kW	1.4	3.4	5.1	9.9	15.6	20.1	23.3	30.2	49	59.2
Running Current		A	6.3	6.8	10.2	19.7	31.2	40	46.5	60.4	98	118.4
Refrigerant			R410A
Control Type			Digital temperature display microcomputer controller
Power Supply Type			1N，220V，50Hz	3N，380V，50Hz
Safety Protection Device			Overload、Inverse Phase(3 Ph)、High/Low Pressure、Low Level、Antifreeze Protection，etc
Compressor	Type		Hermetic Rotor Or Scroll Type
Compressor	Power	kW	0.9x1	2.7x1	4x1	8x1	12.7x1	8x2	9.6x2	12.7x2	20.5x2	12.7x4
Condenser	Type		MCHE Or Finned Tubes
	Air Flow	m³/h	1000	3000	5000	10000	15000	20000	25000	30000	50000	60000
	Fan Power	kW	0.11x1	0.33x1	0.55x1	1.1x1	0.8x2	1.1x2	1.1x2	1.1x2	2.2x2	1.1x4
Evaporator	Type		Submerged Coil Type			Dry Shell And Tube Type
Evaporator	In/Out Pipe Size	Inch	1/2	1	1	1.5	2	2.5	2.5	2.5	3	3
Tank Volume		L	30	70	70	120	120	200	200	200	400	400
Pump	Flow	m³/h	0.5	1.5	2.4	5	7.3	9.9	11.5	14.9	23	31
	Pressure	bar	2.7	2.5	2.7	2.7	2.7	3	3	3.4	3	2.9
	Power	kW	0.37	0.37	0.55	0.75	1.3	1.85	1.85	2.6	3.5	4
Size(L×W×H)		cm	656570	1107282	14068120	150820172	20092180	225112220			250150245	240200220
Net Weight		kg	90	150	170	370	520	590	790	880	1280	1420
Refrigerant Charge		kg	0.8	2.7	4.3	8.5	13	17	21	25	42	50

FIELDS OF APPLICATION

OTHER PRODUCTS

PRODUCTS THAT YOU MAY INTERESTING

Diecasting Industry

AODE precise mold temperature control enhances diecasting quality and cycle time in magnesium, aluminum, and zinc alloy diecasting.

Chemical Industry

AODE delivers industry-specific thermal control solutions from -120℃ ultra-low to +400℃ ultra-high temperatures, with advanced features like cascade control and explosion-proof configurations. Our systems are trusted by global leaders such as BASF, 3M, Sinopec, PetroChina, Corning, Dow, and top institutions including the Chinese Academy of Sciences, Tsinghua University, China Aerospace, and more.

Automotive Component Testing

The test industry is mainly used in the new energy automobile industry, such as motor, battery pack, controller, heat exchanger, pump, valve, pipeline and other components of high and low temperature performance testing, can achieve intelligent temperature, flow, pressure regulation and monitoring.

Composite Material Industry

AODE has established long-term strategic partnerships with 15 globally recognized sheet, board, and film equipment manufacturers. We hold a leading market share in lithium battery separator applications, with clients such as Enjie, Senior, Dongcai, Putailai, and Zhuoqin. In the photovoltaic film sector, AODE also leads the market, serving top players like Sveck, HiUV, and Saiwu

Rubber/Plastic Industry

AODE thermal control systems serve top global tire brands such as Bridgestone, Giti Tire, Wanli Tire, Hankook, Kenda, and Linglong. We maintain long-term strategic partnerships with eight leading global rubber molding machine manufacturers. Our product range is comprehensive, including TCU temperature control units, multi-channel temperature control systems, mold temperature controllers, and industrial chillers.

Sheet/Plate/Film Industry

Sheet film industry is mainly used in lithium electric diaphragm, cast film, PVC sheet, printing film, XPS extrusion board, optical film, PI film, protective film and other fields of die head, roll, barrel temperature control.

Semiconductor Industry

AODE focuses on advanced thermal control technologies for the semiconductor industry, offering high-precision, intelligent, and integrated temperature control solutions. These systems meet the stringent requirements of wafer fabrication, chip packaging, testing, and related processes. Through precise temperature regulation and stable circulation cooling systems, AODE ensures process stability and yield improvement, helping customers enhance production efficiency and product competitiveness.

Other Industries

In addition to die-casting, chemical, testing, composite, rubber and plastic, sheet film and other main fields of application, our products are also used in lithium batteries and materials, 5G materials, 3C communications, circuit boards, semiconductors, military, aerospace, rail transit, light guide plate, optical lens, connector printing, packaging, drying, carbon fiber products, etc.
