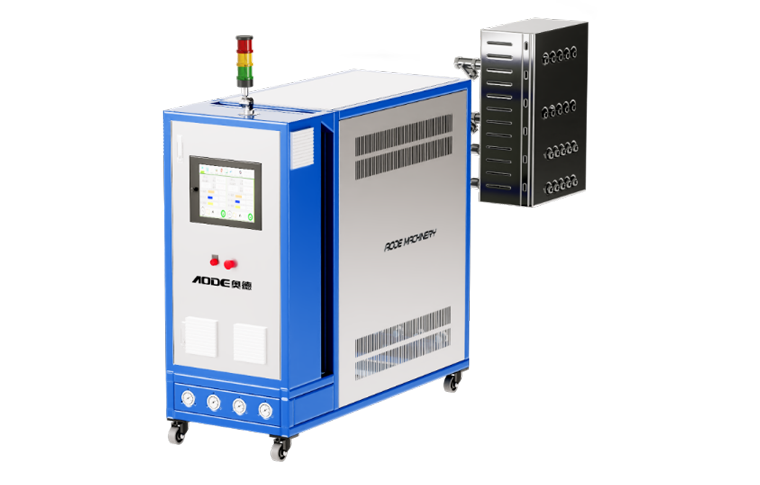

WATER TEMPERATURE CONTROL UNIT FOR DIE CASTING

Circulating pump: Magnetic drive, long time operation of continuous shaft/ prevent leak

Request for quotation

Online Consultation

ADVANTAGES

EFFICIENT AND SUSTAINABLE

Circulating pump: Magnetic drive, long time operation of continuous shaft/ prevent leak

High heat conduction efficiency: About 6 times heat conduction oil

Heater: Unique dry burning and scale resistant design

IIOT: Flow rate, pressure and temperature can be monitored

Safe and reliable: Boiler standard manufacture

Energy conservation and environmental protection: Heat conduction medium is water, low cost

DOWNLOAD THE SYSTEM MANUAL

DOWNLOAD

PARAMETERS

DATA PARAMETER

ITEM	UNIT	MODEL
ITEM	UNIT	WT180D-24T/2	WT200D-24T/2
Temp control range	℃	Inlet water temperature +25℃~180℃	Inlet water temperature +25℃~200℃
Temp control accuracy	℃	PID 士1
Power supply		AC 3N-380V/400V-50HZ(3phase+Earth)
Heat transfer medium		Water
Cooling method		Indirect Cooling
Cooling power	KW	350KW @180℃	400KW @200℃
Heating capacity	KW	24*2	24*2
Motor power	KW	2.5*2	2.5*2
Pump flow	L/min	90	90
Pump head	m	90	90
Max.power consumption	KW	54.5	57.4
Alarm function		Pump reversal/Water shortage/Overheating/Overloading/High pressure/pressure/diversence/flow/divergence
Circulating water pipe	inch	1''*2
Cooling water pipe	inch	1''+1''
Size(L×W×H)	inch	13506001300

FIELDS OF APPLICATION

OTHER SOLUTIONS

PRODUCTS THAT CAN HELP YOU

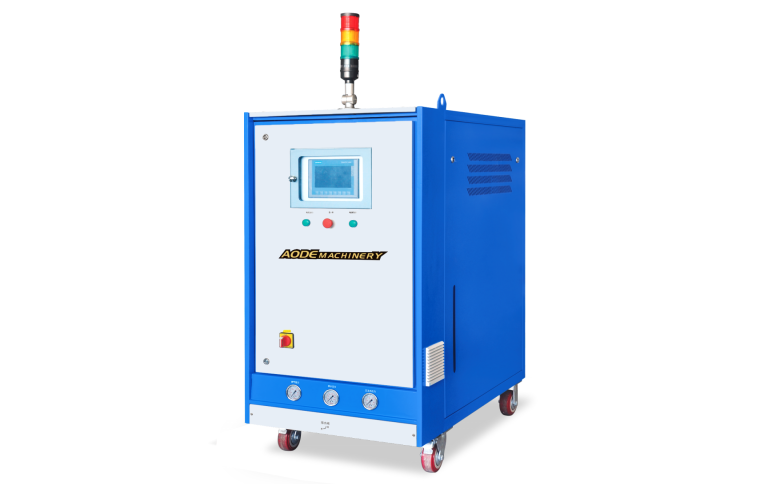

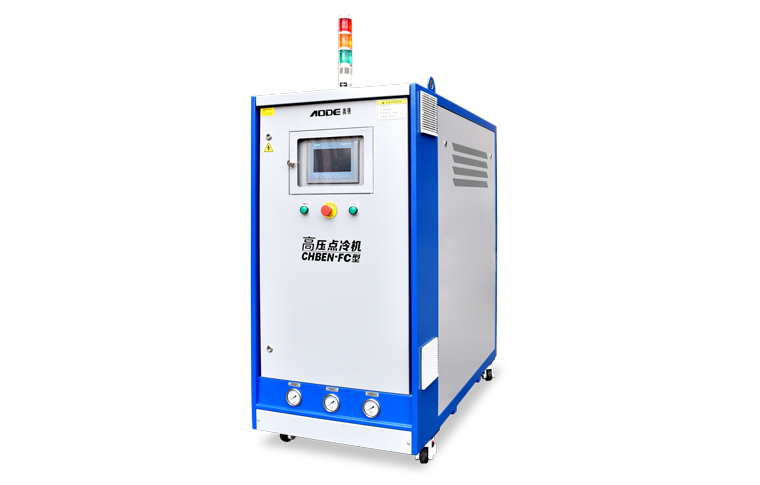

High pressure die cooler

Inner pipe diameter ≥ φ 3MM point cooling tube and cooling water channel cooling

JET COOLER

Controlled solidification + shrinkage，Effective cooling，Control cooling time，Reduce spraying time，Reduce product shrinkage，Prevent core pin burning，Improve production efficiency

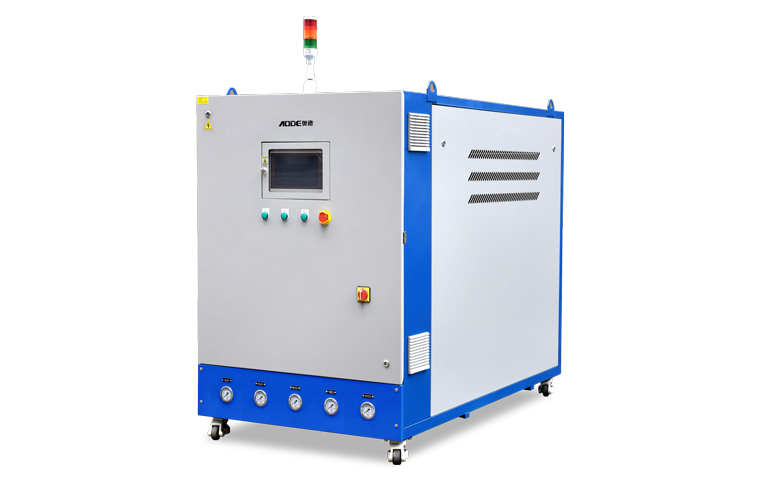

Multi-channel high temperature water heater for die-casting

Single, double circuit design, each machine can simultaneously docking 10-40 mold channels, Each branch can choose intermittent water control, and the temperature control interval is effectively extended.

Mould cooling station

Achieve accurate temperature control and mold heat balance by supplying cooling water to different zone of the mold.

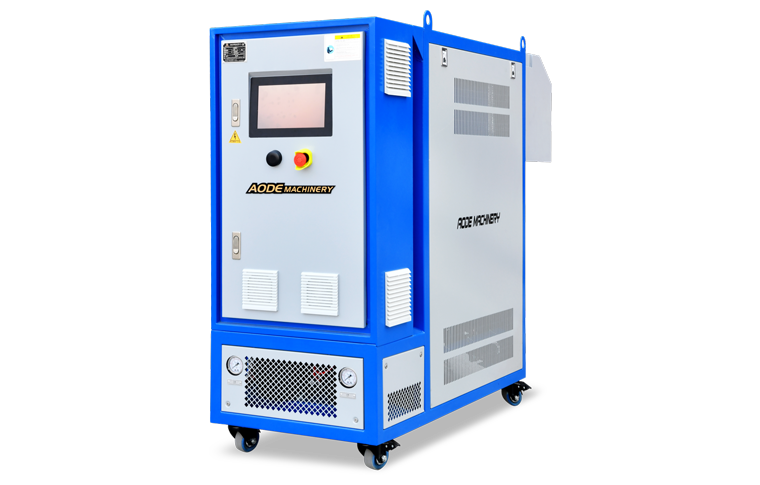

OIL TEMPERATURE CONTROL UNIT FOR DIE CASTING

Single or dual loop is optional to realize partition control, Preheat/cool, mold heat balance, Improve product appearance, Defective product reduction, Prolong die life, To achieve uniform spraying and micro spraying, Improve productivity
