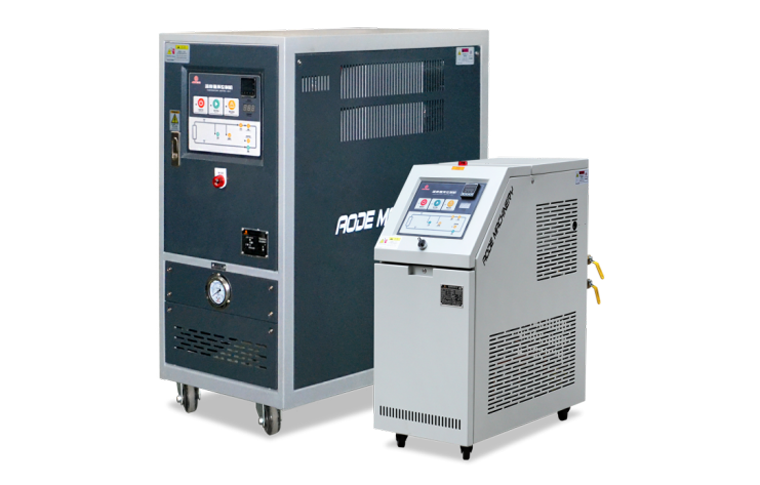

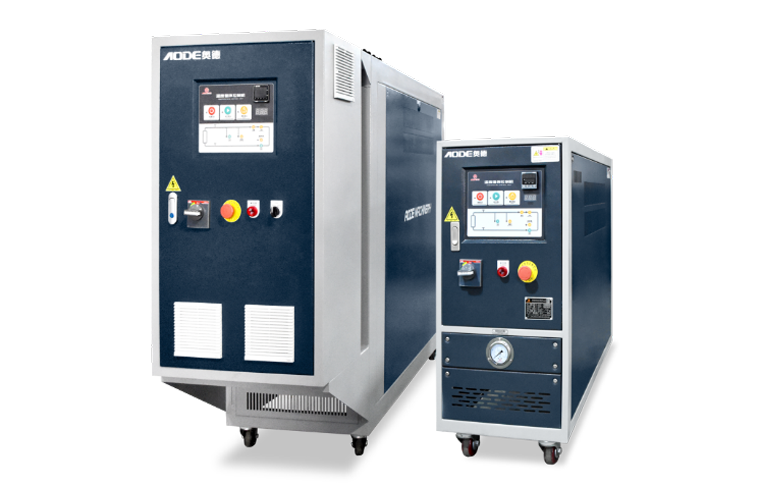

Home Our Products Heating Series Water Temperature Machine STANDARD WATER TEMPERATURE CONTROL UNIT
Inlet water temperature +25℃~100℃
Inlet water temperature +25℃~100℃
| ITEM | UNIT | MODEL | |||
| AWM-05(A) | AWM-10(A) | AWM-20 | AWMD-10 | ||
| Temp control range | ℃ | Inlet water temperature +25℃~100℃ | |||
| Tempcontrol accuracy | ℃ | PID±1℃ | |||
| Power supply | / | AC 3N-380/400V-50HZ(3phase+Earth) | |||
| Heat transfer medium | / | Water | |||
| Cooling method | / | Direct cooling | |||
| Heating capacity | KW | 6 | 9 | 12 | 9+9 |
| Motor power | KW | 0.37 | 0.75 | 1.5 | 0.75+0.75 |
| Pump flow | L/min | 26 | 100/33 | 150 | 100+100 |
| Pump head | m | 15 | 16/20 | 18 | 16 |
| Max.power consumption | KW | 6.37 | 9.75 | 13.5 | 19.5 |
| Alarm function | / | Pump reversal/Water shortage/Overload | |||
| Cooling water pipe | inch | 1/2 | 1/2 | 1/2 | 1/2 |
| Circulating water pipe | inch | 3/8*2 | 3/8*4 | 1 | (3/8*4)*2 |
| Size(L×W×H) | mm | 650*288*645 | 650*288*645 | 650*288*645 | 800*420*750 |
Significant Improvement in Molding Efficiency.
Energy Saving and Low Operating Costs.
High-Precision Temperature Control.
Intelligent Management.
Learn more
Precise Temperature Control for Quality Assurance.
High Efficiency and Energy Saving.
Intelligent Monitoring and Management.
Adaptable to Diverse Process Requirements.
