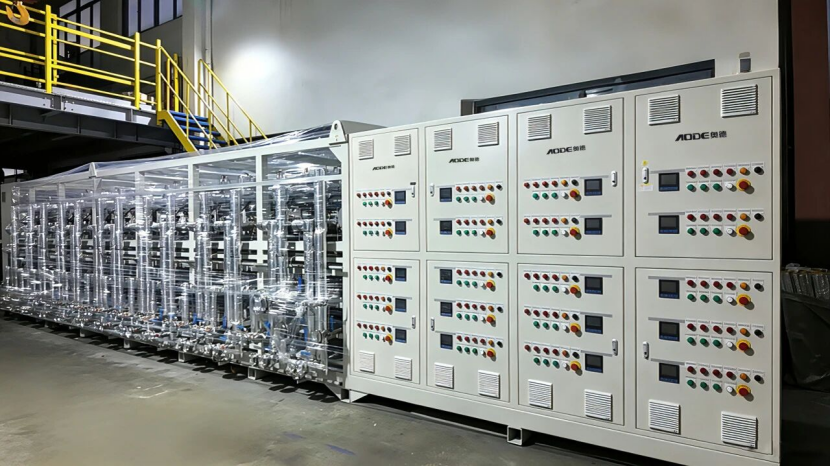

Recently, the 25-channel water circulation temperature control machine specially designed by AODE for the extrusion and calendering production line has successfully completed the production process and been loaded onto the vehicle for shipment. The customized equipment exported this time fully demonstrates Aode's leading system integration capabilities and customized solution strength in the field of industrial temperature control.
AODE

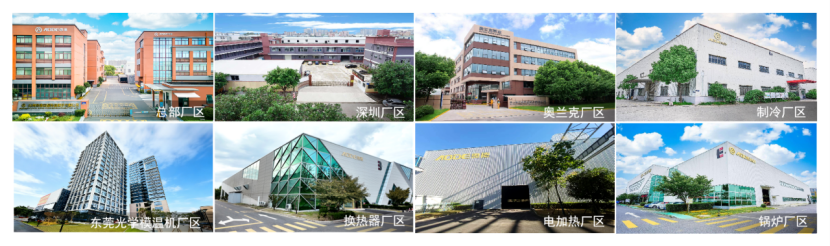

As a national high-tech enterprise that has been dedicated to the field of industrial temperature control since its establishment in 2004, Aode has set up 8 major production bases in East China and South China. Its products are exported to 40 countries around the world, including Japan, the United States, Italy, Brazil, Southeast Asia, and Africa.
The 25-channel water circulation temperature control machine exported this time is not merely an increase in the number of temperature control loops; rather, it poses a severe challenge to the design, manufacturing, and control logic of the entire temperature control system.
01 Face the technical challenges head-on, 25-channels independent with precise temperature control
The extrusion and calendering process has strict requirements for temperature control. The process temperatures of each section of the extruder (cylinder, die head) and the calendering rollers are different and need to be controlled independently without interfering with each other; at the same time, the temperature fluctuations need to be controlled within ±1℃, which poses extremely high challenges to temperature control accuracy and system stability.
The AODE 25-channel water temperature machine has achieved precise management of 25 independent temperature control loops, ensuring that the flow, pressure and temperature of each channel precisely match the process requirements, effectively guaranteeing the uniformity of the molten extruded material, the stability of the die head outlet, and the consistency and surface quality of the calendered products.
Unlike conventional equipment that uses direct cooling methods, this equipment adopts an indirect cooling method, making the temperature control process more stable and controllable, effectively avoiding the temperature shock that may be caused by direct cooling, and significantly improving the stability of temperature control and product yield.
At the same time, to ensure the reliability and durability of the equipment's overall operation, the entire machine is assembled with first-line brands such as Grundfos and Schneider. The accessories and the production process of the entire machine strictly follow corresponding specifications and meet all requirements of CE certification, providing a safety guarantee for the equipment's export.
02 Multiple safety protections, ensuring trouble-free operation
The equipment is equipped with 7 layers of safety protection functions including reverse phase protection and overload protection, ensuring the long-term stable operation of the equipment.
For such a large-scale equipment, how to safely transport it to the overseas site poses extremely high requirements for structural design and transportation methods. The Od team has formulated a special transportation plan based on the equipment characteristics, controlling the entire process from packaging reinforcement to cross-border logistics to ensure the safe arrival of the equipment at the customer's site.
AODE : Empowering Chinese Manufacturing with Precise Temperature Control
As a domestic enterprise specializing in the production of precision temperature control equipment and providing temperature system solutions, Aode products have covered an all-round product matrix including mold temperature machines, water chillers, high and low temperature series, TCU series, boiler series, pump series, heat exchanger series, and electric heating tube series. The company has maintained close strategic cooperation with foreign main equipment manufacturers and well-known domestic research institutions for a long time, and has successfully provided efficient and stable temperature control product services to over 12,000 enterprises worldwide.
Aode products have the strength to replace imported temperature control equipment. In the future, it will continue to improve and focus on China while looking to the world, providing customers around the globe with higher-quality temperature control equipment and system solutions.
