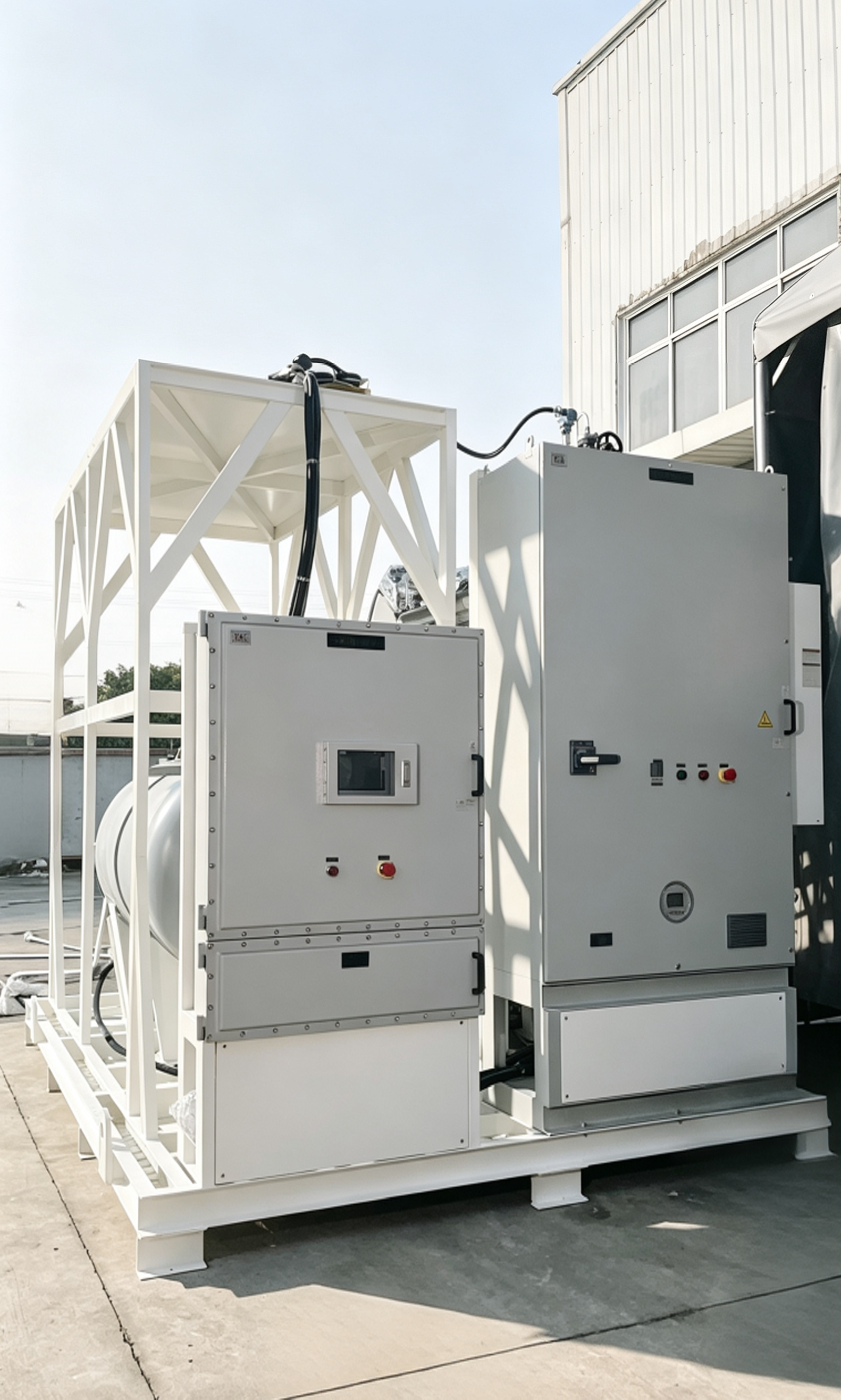

Recently, Suzhou AODE Precise Equipment Co.,Ltd. (hereinafter referred to as "AODE") successfully completed commissioning of an electric heating organic heat carrier furnace custom-built for pharmaceutical and chemical industry clients, and shipped it to the customer site. This tailor-made equipment fully demonstrates AODE's leading system-integration capability and strength in customized solutions within the high-end temperature-control field.
AODE

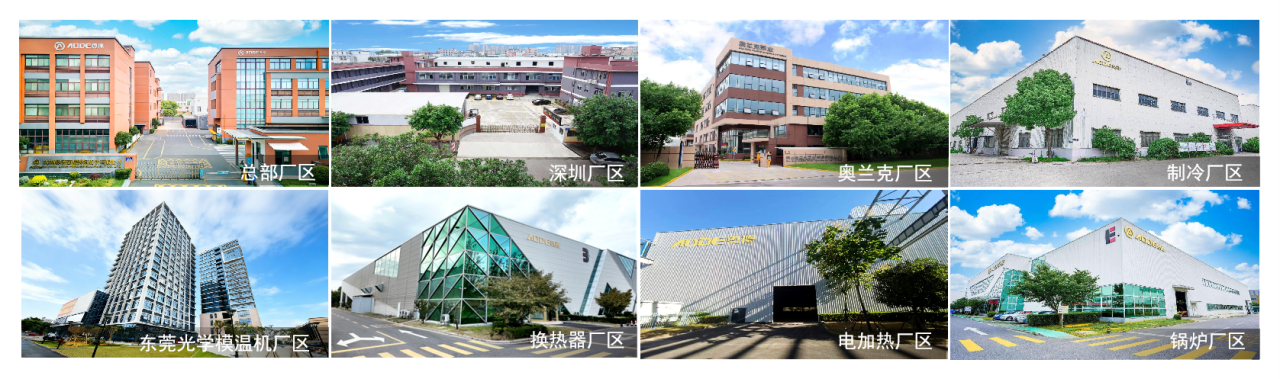

As a national high-tech enterprise that has focused on the industrial temperature-control field since its founding in 2004, AODE has established eight major production bases across East China and South China and holds a Class-B boiler manufacturing qualification.
The electric heating organic heat carrier furnace shipped this time was custom-developed to meet the stringent requirements of pharmaceutical and chemical reaction-kettle processes for precise high-temperature control, explosion-proof safety, and intelligent management.
Pharmaceutical and chemical reaction-kettle processes demand extremely high precision and stability in temperature control. Heat-transfer oil (thermal oil) provides a stable high-temperature heat source, avoiding localized overheating caused by direct electric heating, and is well suited to temperature-sensitive chemical reactions.
AODE's organic heat carrier furnace uses a heat-resistant paint rated to 300°C for surface treatment, with a temperature-control range spanning ambient to 300°C — meeting the core process needs of pharmaceutical API synthesis and reaction-kettle heating.
The equipment is equipped with PID intelligent auto-tuning control, achieving temperature accuracy of ±1°C, effectively preventing overshoot or fluctuation and ensuring consistency across reactions.
Chemical production environments often involve flammable and explosive materials, imposing extremely high requirements on equipment explosion-proof performance.
AODE's organic heat carrier furnace is designed and manufactured in strict accordance with the ExdIIBT4 explosion-proof rating; both the core components and the electrical control cabinet adopt explosion-proof configurations.
A first-class (Grade 1) energy-efficiency circulation pump is selected, delivering energy savings while ensuring strong circulation capacity.
The expansion tank + low-position tank are skid-mounted as one unit (both made of CS carbon steel), effectively maintaining stable pressure in the heat-transfer oil system and preventing oil oxidation and degradation. The 1000 L low-position oil tank provides ample heat-transfer oil reserve, ensuring stability and reliability during long-term, high-load operation.
The equipment is equipped with a PLC and a high-definition Chinese–English HMI (human–machine interface), offering intuitive and convenient operation. It is fitted with an RS485 communication port for remote communication and automated management with the plant DCS system.
The equipment integrates multiple safety-protection functions, covering a complete safeguard system including overload protection, over-temperature protection, and low-oil protection.
AODE: Empowering China's Intelligent Manufacturing with Precision Temperature Control
22 Years Dedicated to High-End Industrial Temperature Control
As a domestic enterprise specialized in manufacturing precision cooling/heating temperature-control equipment and providing temperature-system solutions, AODE's product portfolio now spans a full matrix — mold temperature controllers, chillers, electric heating thermal-oil furnaces, integrated high–low temperature units, industrial boilers, pumps, heat exchangers, electric heating elements, and more. The company has long maintained close strategic cooperation with renowned research institutes and host-equipment manufacturers at home and abroad, and has successfully delivered efficient, stable temperature-control products and services to over 12,000 enterprises worldwide.
Going forward, AODE will keep refining its capabilities — rooted in China and looking to the world — to provide global customers with higher-quality temperature-control equipment and system solutions.
